PE Carbon Spiral Pipe Production Line Manufacturer – Qingdao Aorui Plastic Machinery
Qingdao Aorui is a professional manufacturer and factory in China, specializing in PE carbon spiral pipe production lines. Our PE carbon spiral reinforced pipe machines are designed to produce strong, lightweight, and durable pipes with a spiral reinforcement, combining polyethylene with carbon fiber or carbon compound to enhance rigidity and performance.
The production line includes precision extruders, spiral reinforcement units, cooling/calibration tanks, haul-offs, and cutting units. The spiral reinforced structure improves pressure resistance, impact resistance, and reduces deformation under load. Suitable for underground drainage, sewage systems, agricultural irrigation, and industrial fluid transportation.
As a leading Chinese supplier, Aorui offers complete custom solutions, stable and high output machinery, strict quality control, and professional after-sales support. We ensure customers worldwide receive reliable equipment for PE carbon spiral pipe manufacturing
The SJ75/33 PE Carbon Spiral Pipe Extrusion Line is a high-efficiency production system designed for manufacturing carbon-reinforced polyethylene (PE) spiral pipes. Using HDPE as the base material and carbon composite strips for reinforcement, the pipes produced by this line feature excellent compression resistance, flexibility, and durability.
SJ75/33 PE Carbon Sprial Pipe Extrusion Line
Brief introduction of HDPE Carbon Pipe Making Machine:
1.The SJ75/33 PE Carbon Spiral Pipe Extrusion Line is a high-efficiency production system designed for manufacturing carbon-reinforced polyethylene (PE) spiral pipes. Using HDPE as the base material and carbon composite strips for reinforcement, the pipes produced by this line feature excellent compression resistance, flexibility, and durability.
2.They are widely used for power cable protection, communication conduits, municipal drainage, and underground wiring systems.
Main components of Carbon Reinforced HDPE Pipe Manufacturing Equipment

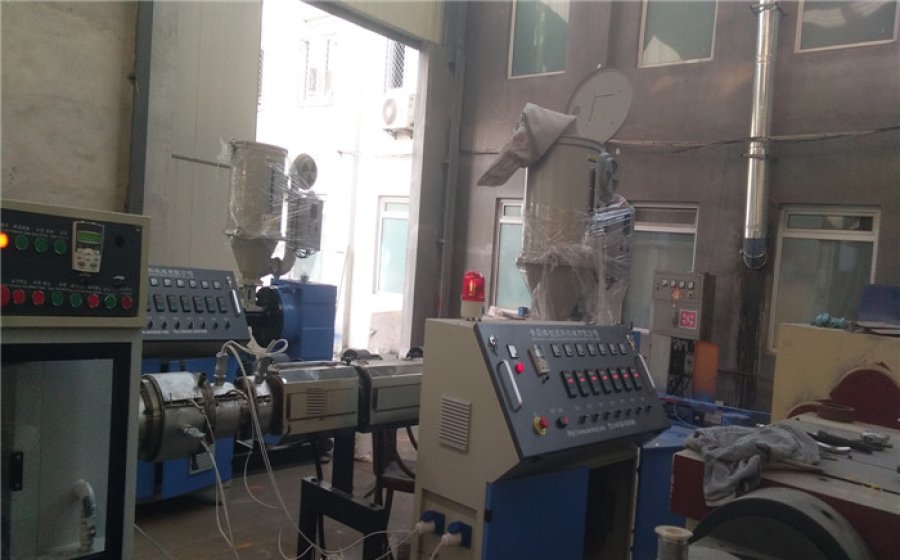

This extrusion line features a compact structure and a high level of automation. The main components include:
1.Automatic Loader & Dryer
Automatically conveys and pre-dries raw materials to ensure purity and stability, preventing moisture or bubbles during extrusion.
2.SJ75/33 High-Efficiency Single Screw Extruder
Equipped with a high-torque gearbox and an optimized screw design, it provides excellent plasticization and stable output. The inverter control system ensures energy efficiency and smooth continuous operation.
3.Co-Extrusion Die Head
Made from high-quality alloy steel with an optimized flow channel design, ensuring uniform wall thickness and stable material flow. The die works with carbon strips to form a strong spiral reinforcement layer.
4.Forming Machine
The core section of the line. It combines the carbon strip with PE material through spiral winding technology, forming a solid and uniform structure. It includes an automatic sizing and cooling system for precise dimensions.
5.Cooling Water Tank
Constructed from stainless steel with a circulating water system to ensure fast cooling and smooth surface finishing.
6.Haul-Off Machine
Uses a multi-track pulling system for stable and consistent traction. Synchronization with extrusion speed guarantees accurate wall thickness.
7.Automatic Cutter
Features a precise length-measuring and cutting system, producing smooth, burr-free pipe ends.
8.Coiler or Stacker
Depending on pipe diameter, it can automatically coil or stack finished pipes for easy storage and packaging.
Technical datas:
| Model/data | Pipe diameter | Extruder model | Speed | Max capacity |
| PE63 | 16-63mm | SJ65 | 1-12m/min | 80kg/h |
| PE110 | 50-110mm | SJ75 | 1-8m/min | 150kg/h |
| PE160 | 75-200mm | SJ90 | 1-5m/min | 260kg/h |
| PE400 | 200-400mm | SJ120 | 0.5-1.5m/min | 450kg/h |
| PE630 | 400-630mm | SJ120,SJ90 | 0.1-0.8m/min | 650kg/h |
| PE800 | 630-800mm | SJ 150,SJ120 | 0.1-0.8m/min | 800kg/h |
Main advantages of Carbon Spiral Cable Protection Pipe Production Line:
High Structural Strength: Spiral carbon reinforcement increases pipe compressive strength by over 30%.
Energy Efficient: Equipped with frequency control and advanced heating systems, saving up to 15% energy.
Smart Operation: PLC control with touch screen interface, simple and intuitive to operate.
Stable and Reliable: Capable of continuous production with minimal material waste.
Easy Maintenance: Modular design ensures easy cleaning and component replacement.
Application Fields
The SJ75/33 Carbon Spiral Pipe Extrusion Line is widely used in:
High-voltage cable protection systems
Optical fiber and communication conduit production
Municipal water drainage and sewage systems
Agricultural and underground wiring projects
