Plastic Corrugated Pipe Production Line Manufacturer – Qingdao Aorui
Qingdao Aorui Plastic Machinery Co., Ltd. is a leading factory and manufacturer in China specializing in the design, development, and production of plastic corrugated pipe production lines. Our corrugated pipe extrusion line includes both single-wall and double-wall corrugated pipes — such as PE single-wall corrugated pipes (16 mm–50 mm) and large-diameter double-wall corrugated pipes — for applications including drainage, cable protection, conduit, and underground piping systems.
We provide the full set of equipment: high-performance extruders, corrugator molds, vacuum calibration tanks, haul-offs, cooling systems, and cutting/stacking units. Models are engineered for stable operation, high output, energy efficiency, and consistent pipe wall thickness and profile. As a professional Chinese supplier, Aorui delivers quality machinery with competitive pricing, strong after-sales support, and customized solutions to meet diverse needs globally.

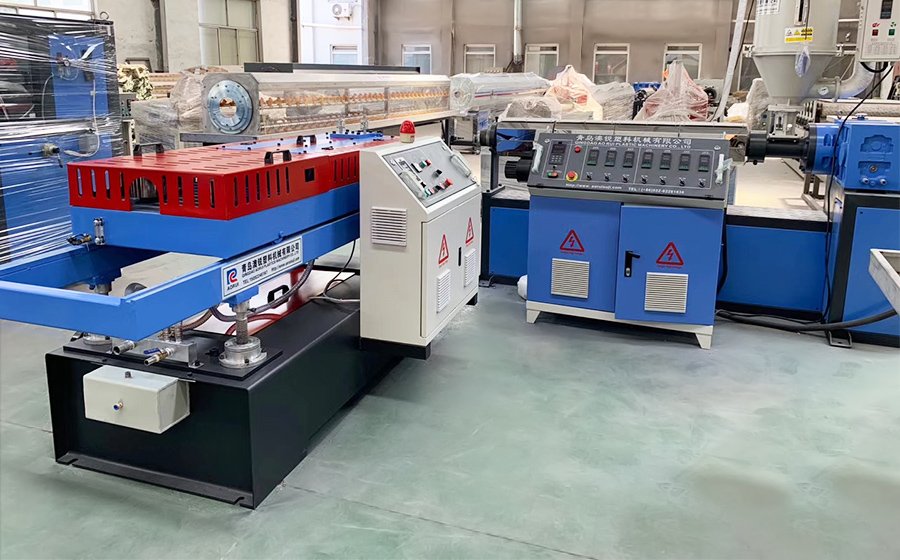

The PVC and PE single wall corrugated pipe production line produced by Qingdao Aorui Plastic Machinery Co.,ltd consists of plastic extruder, single wall corrugated pipes extrusion die, corrugated forming device, cutting machine and winding machine. By configuring different extruders and extrusion dies, our single wall corrugated pipes production lines can produce high quality PVC single wall corrugated pipes.
Machine details:
1. Process line:Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing.
2. The production line is suitable for producing small diameter single wall bellows with PP and PE raw materials. It can continuously produce polyethylene, polypropylene, polyvinyl chloride, Eva and other bellows and PA bellows.
3. Single wall high speed corrugated pipe forming machine can produce two diameters or three diameters single wall corrugated pipe in the same mould blocks, which reduce the cost of the moulds and time for changing the mould blocks, increase the efficiency.
Technical parameters:
Pipe diameter | 8-32mm | 16-50mm |
Main extruder model | SJ50 | SJ65 |
Main extruder L/D | 25:1/28:1/30:1 | 25:1/28:1/30:1 |
Capacity | 30-50kg/h | 60-80kg/h |
Main motor | 11KW/15KW | 18.5KW/22KW |
Cooling type | Air fans cooling | Air fans cooling |
Forming mould quantity | 50 pairs | 60 pairs |
Production speed | 8-12m/min | 8-15m/min |
Forming machine motor | 1.5kw | 1.5kw |
Application of the PP PE Corrugated Pipe making machine:
This series single wall corrugated pipe extrusion line can be used to produce corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
